My coworkers gave me the challenge of 3d printing something Medieval related. I decided to make a Catapult with the added challenge of making it really fire.

I designed the catapult as a series of pieces that could be printed separately and attached together.

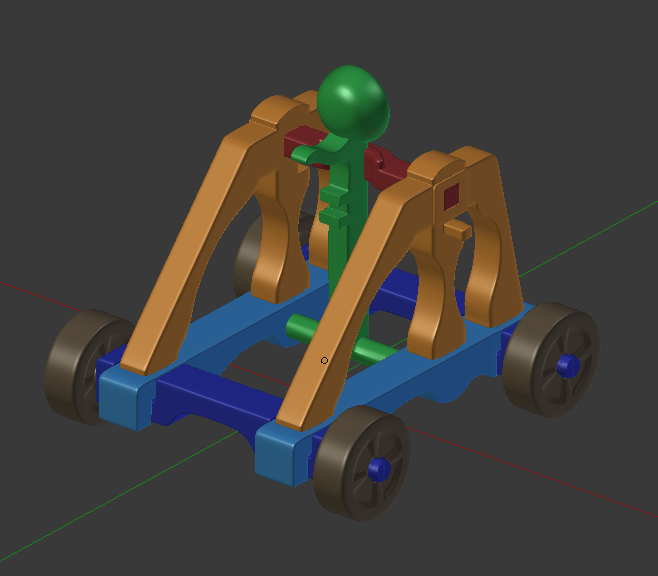

01 - Back Angle in Blender

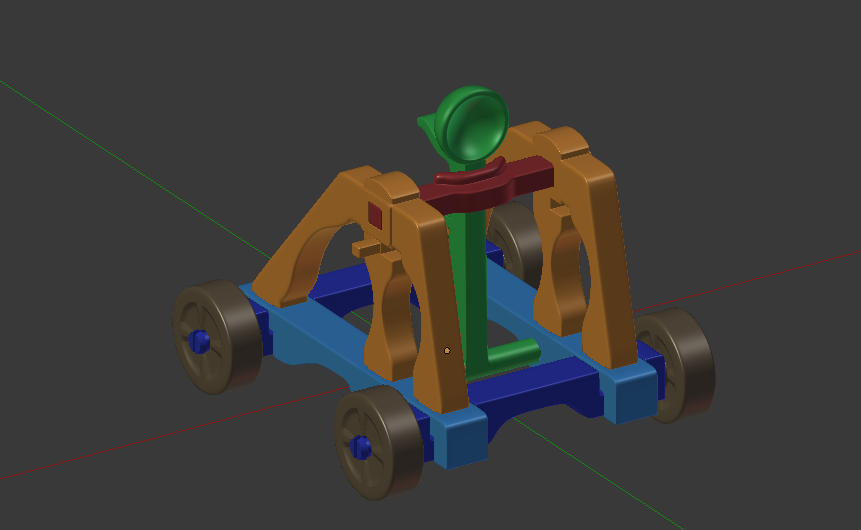

05 - Front Angle in Blender



Here's some orthogonal views:

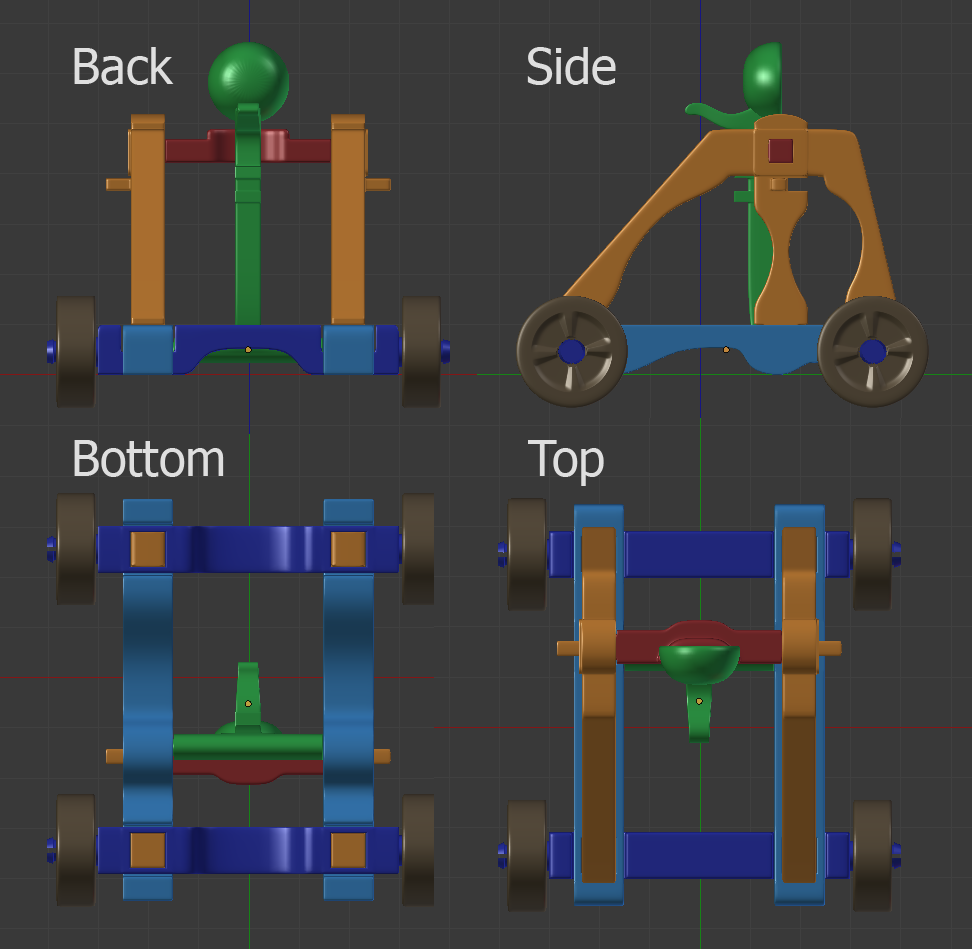

10 - Multiple Sides in Blender



While designing the model I kept in mind the way each piece would be printed and built them so the printer would have an easy time. I laid all the required parts out for 3D printing:

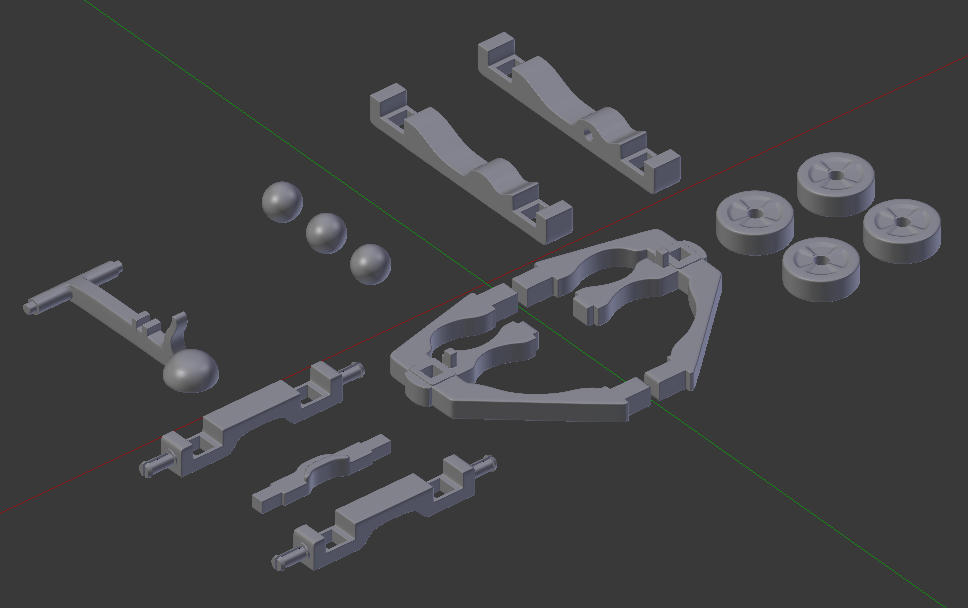

15 - Layed Out for 3D Print

And finally I printed it! Scroll to the bottom for a quick video of the catapult in action!

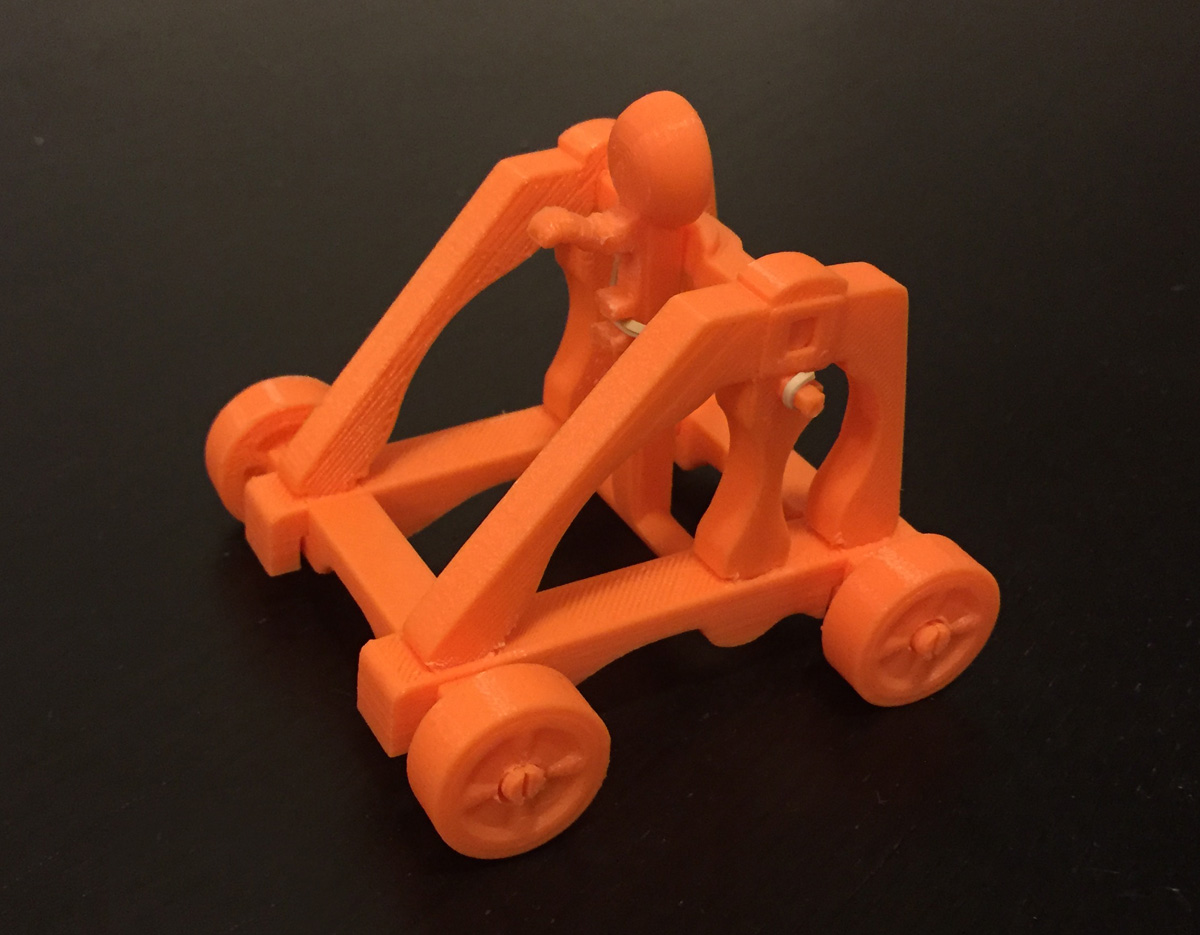

30 - Back Angle

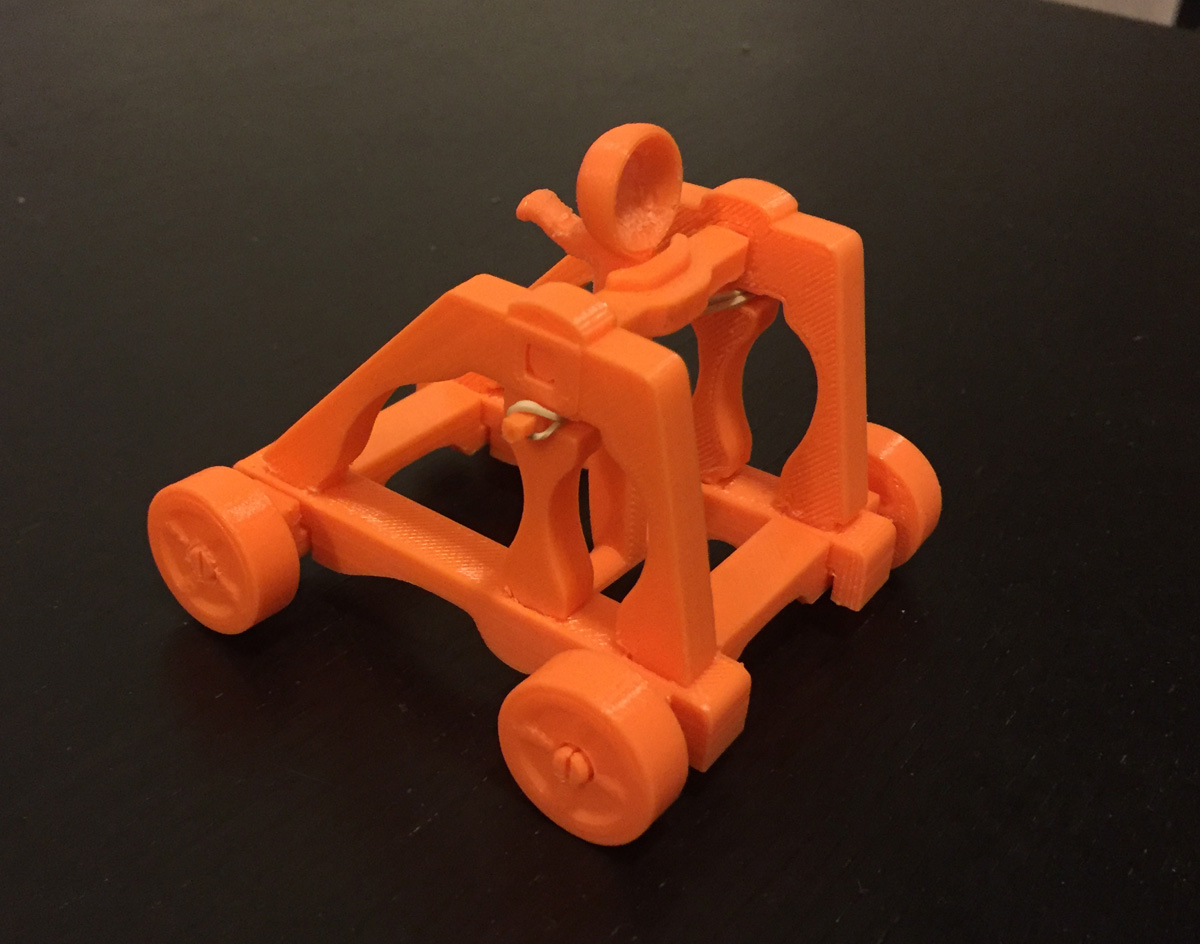

25 - Front Angle 02

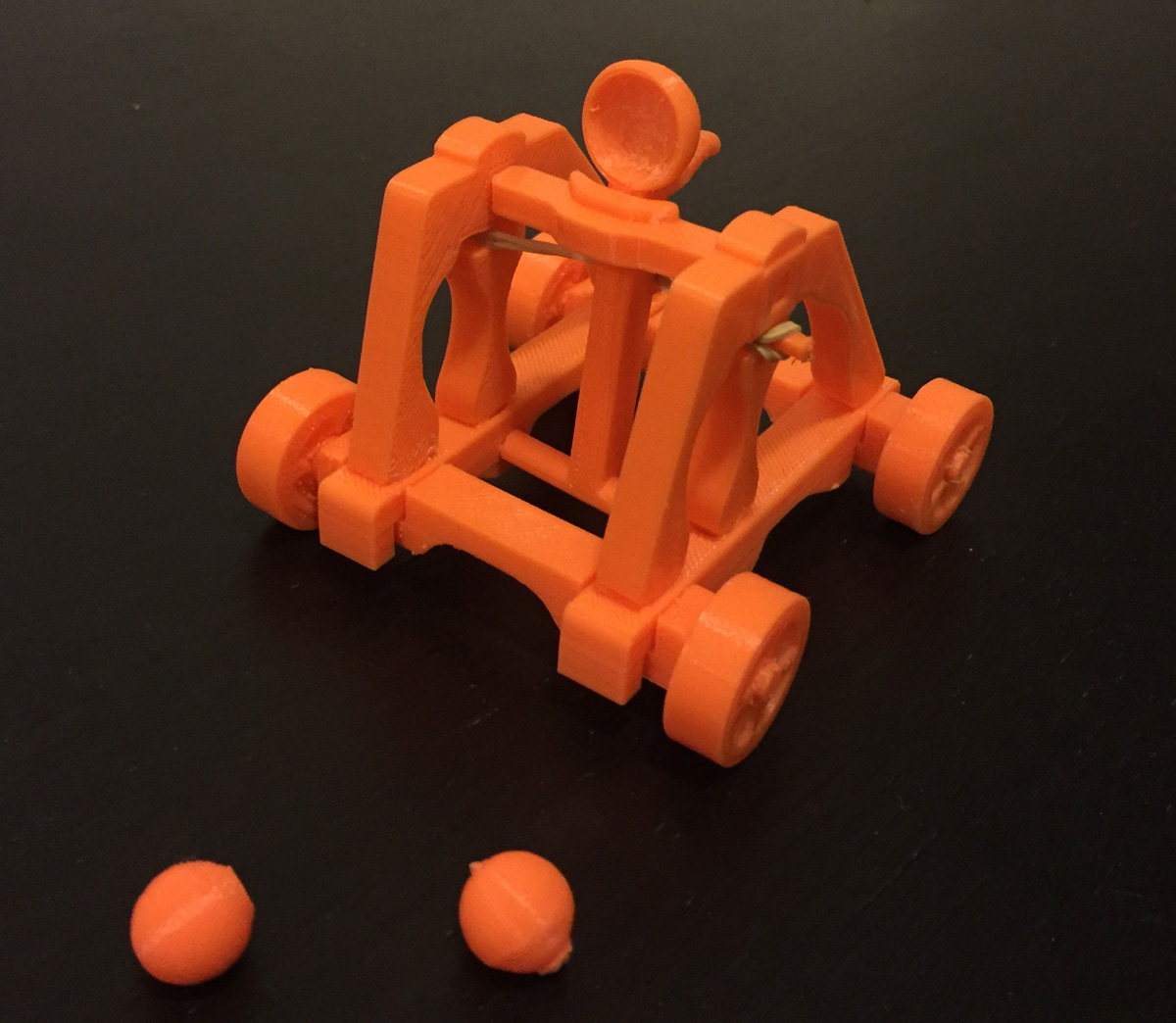

20 - Front Angle 01

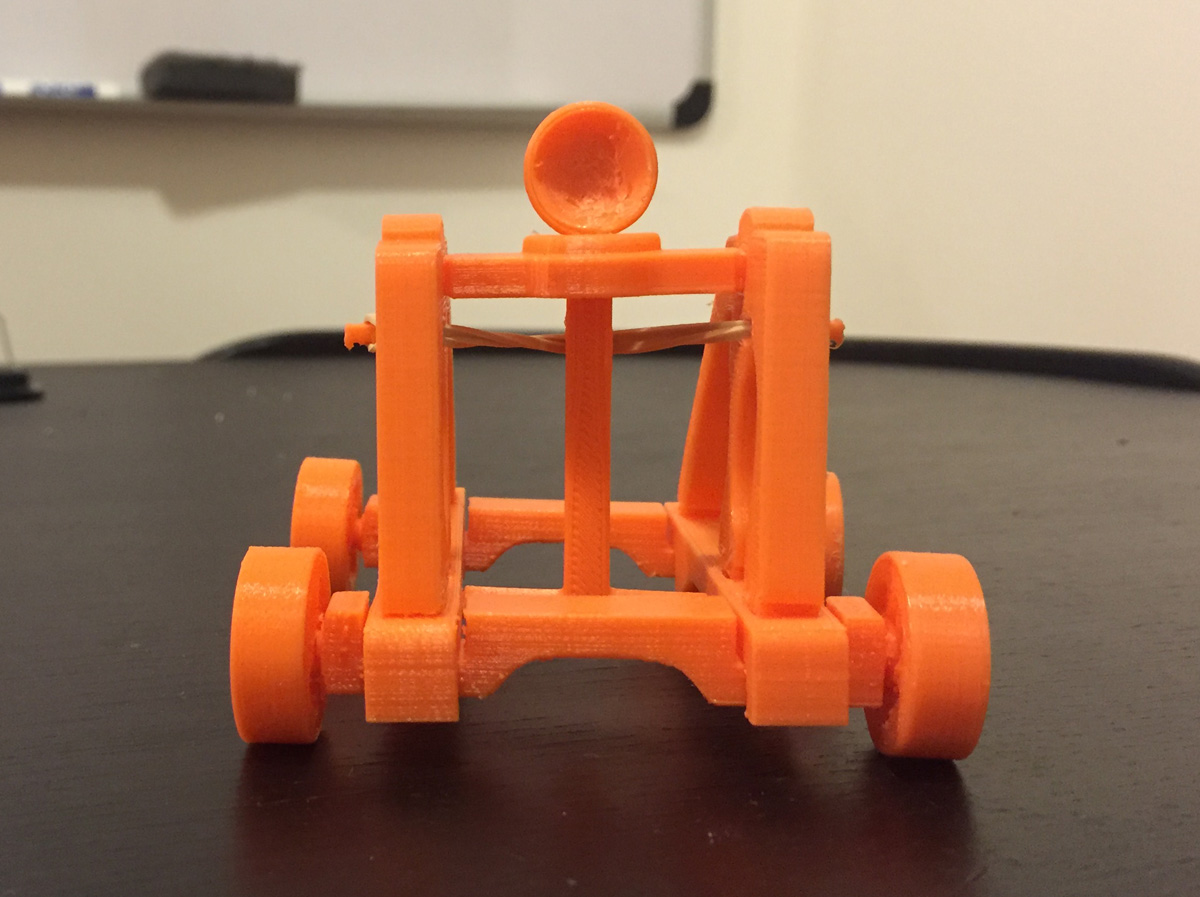

40 - Front

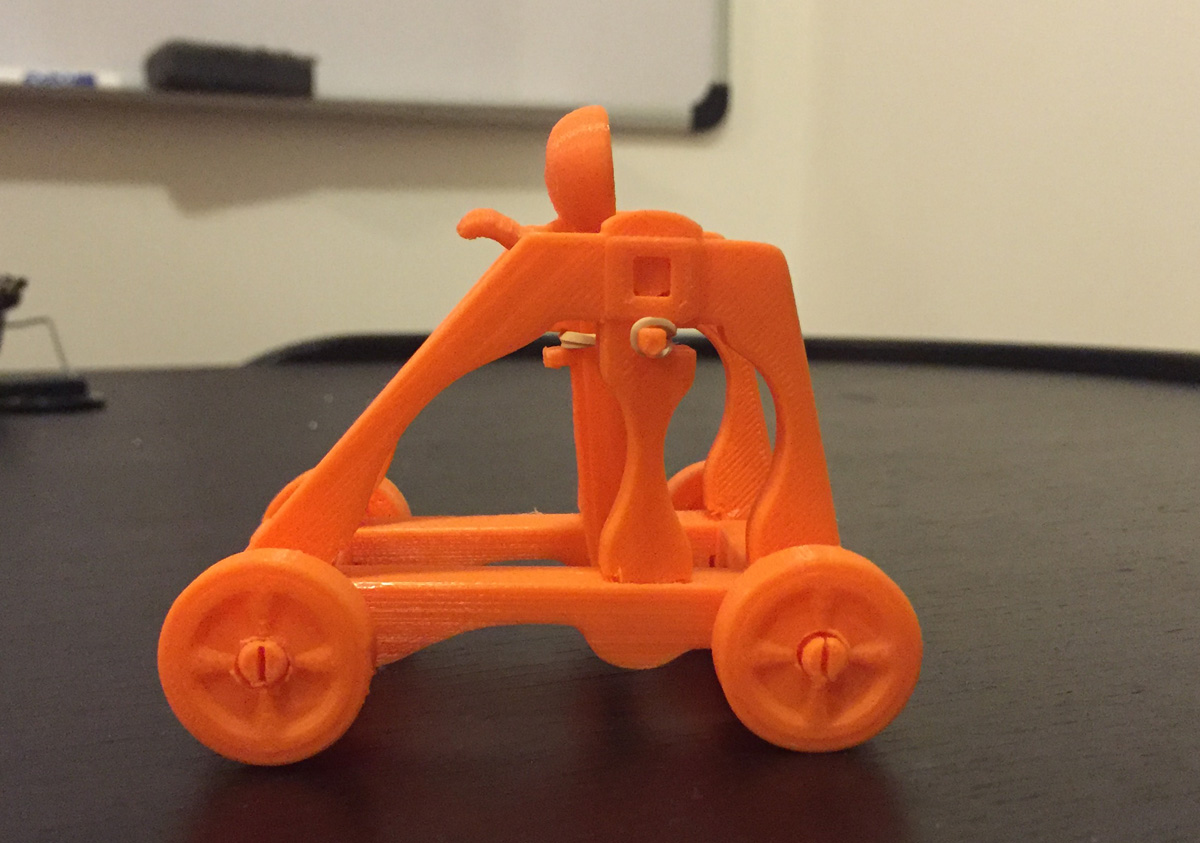

35 - Side

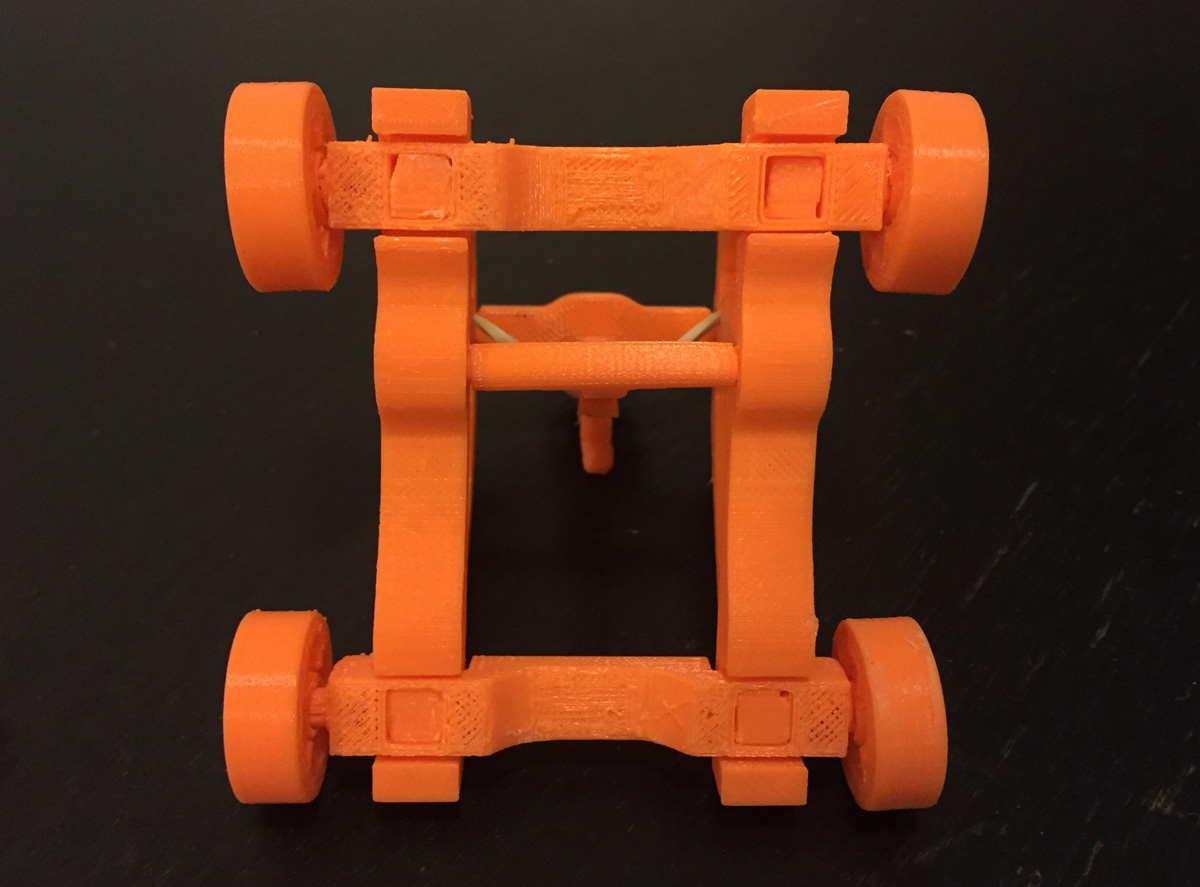

45 - Bottom

Quick video of the catapult in action:
